Score Cut

Score Cut

Shear Cut

Shear Cut

Half cut

Half cut

Hot Cut

Hot Cut

 Guide-bar

Guide-bar

Knives

Knives

Accessories

Accessories

Score Cut Knifeholder

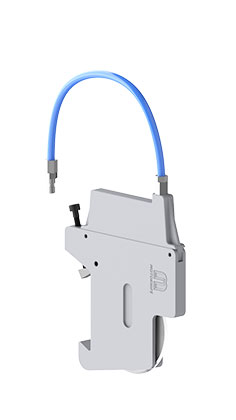

MT-A110Standard Pneumatic Knife holder

MT-A110 is one of the most versatile and flexible crush knife-holder for crush slitting. It works against the hardness anvil roller. Modular designed knife-holder has advantage of excellent rigidity which can accept 6kg/ cm² air pressure and provide stable down force to perform various material slitting job. It can replace score blade/zig zag blade/ k dash blade/wave blade for different slitting application. MT-A110 is using screw method to fix on guide-bar which is compatible with guide-bar GB01/GB02/GB04.
Because of its versatility, MT-A110 is widely used in light rubber, paper, cloth, plastic film...etc.

Detail

Score Cut Knifeholder

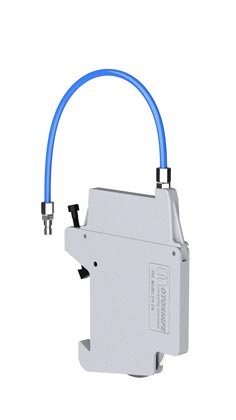

MT-A130Extra Slim Pneumatic Knife holder

MT-A130 is our thinnest crush knifeholder for narrow slitting application. With its compact knife-holder dimensions ,it achieves minimum 10mm narrow web slitting. It is a cost-effective and reliable choice for modular designed knife-holder. The excellent rigidity body frame and stable slitting pressure features can be generated high quality production outputs for low investment. The knife-holder can meet guide-bar GB01/GB02/ GB04 accessories and replace different types of blade for multi-purpose application.
MT-A130 is widely used in slitting light rubber, paper, cloth, plastic film...etc.

Detail

Score Cut Knifeholder

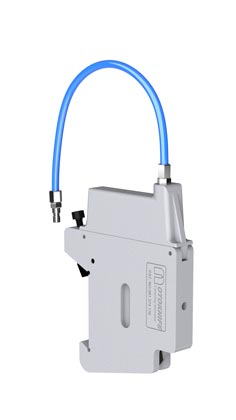

MT-A140Rugged Pneumatic Knife holder

MT-A140 Rugged type knife-holder is designed and optimized primarily for heavy thickness material slitting application. With its strong modular and thinness knife-holder that minimum slitting width only 19mm both satisfied narrow width and heavy slitting conditions. Exceptional rigidity capabilities make it can be accepted 8kg/cm2 air pressure and provide stable down force to perform heavy thickness slitting job. Same as other crush knife-holder family, it can meet guide-bar GB01/GB02/GB04 accessories and replace different types of blade for multipurpose application.
The MT-A140 rugged knife-holder design make for high performance in a wide range of application as heavy rubber, paper, cloth, plastic film...etc..

Detail

Score Cut Knifeholder

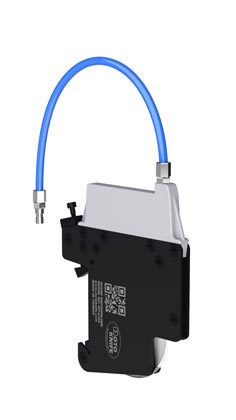

MT-A160Steel body Pneumatic Knife holder

MT-A160 features a compact dimension design, steel body frame and versatile application in the score knife-holder category. It is optimally suited to under 11mm width narrow slitting work. Thanks to its CNC machining steel body frame, the excellent rigidity knife-holder not only offers outstanding performance in various material slitting jobs but also enables lifetime extending. The adaptive knife-holder can be installed with guide-bar GB01/GB02/GB04 accessories and replace different types of blades for multipurpose applications.
MT-A160 is perfectly suited to a wide range of slitting tasks such as light rubber, paper, cloth, plastic film...etc.

Detail

Score Cut Knifeholder

MT-A170Rugged Pneumatic Knife holder

MT-A170 Rugged type knife holder is designed for crush slitting and heritage of the excellent pneumatic score knife-holder serial. It features 6061 aluminum alloy body with the advantage of high strength to extend usage lifetime and is equipped with 100mm slitting blade significantly to improve slitting speed and stability for versatile heavy thickness material application such as rubber, paper, nonwoven, cloth, plastic film, etc.
Compared with standard knife-holder it has more space to clear slitting dust due to material which non-woven will produce a lot of dust while slitting.

Detail

Score Cut Knifeholder

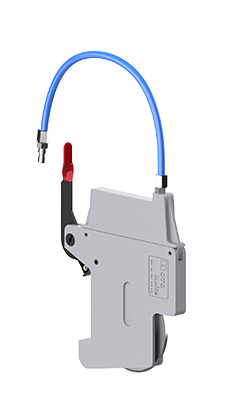

MT-B110Easy Clamp Pneumatic Knife holder

MT-B110 Easy clamp-type knife-holder has a quick locking mechanism design for time-saving in its class. With its easy clamp, it tools free for locking knife-holder on guide-bar only via clamp handle and also can prevent over-tightening screw to damage knife-holder. Optionally teeth ruler with our guide-bar which makes arrange position easily and boost your productivity.
MT-B110 is engineered for easy operation and time-saving, it allows adapt many slitting applications like light rubber, paper, cloth, plastic film... etc..

Detail

Half Cut Knifeholder

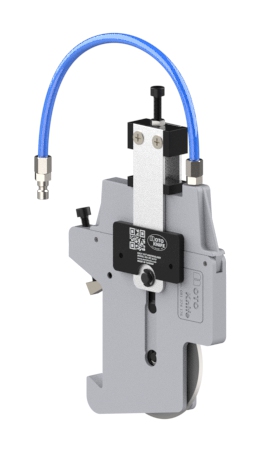

MT-A310Half-Cut Pneumatic Knife holder

MT-A310 is our first non-cut through knifeholder with depth stroke control and precision blade. It masters the handling of multilayer material half cut application precisely and easily. With depth adjustment of 14mm stroke and precision blade roundness of up to +/0.005mm , it performs well in only the upper layer cut off/non-cut through at lower layer and can also reduce blade wear out for lifetime extending.
MT-A310 is available in numerous variations that you can flexibly match to your application. Its versatility makes it suitable for medical adhesive tapes, foam tapes and protection film

Detail

Half Cut Knifeholder

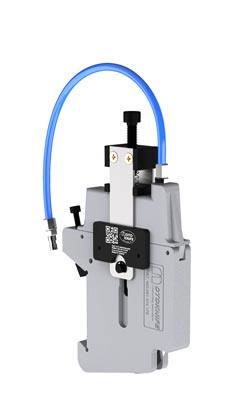

MT-A310HHeavyduty Half-Cut Pneumatic Knife holder

MT-A310H is your ideal half-cut knife-holder choice for heavy material. Thanks to its robust design, it guarantees a steady slitting downforce than MT-A310 knife-holder in heavier and thicker material range of its versatility. With its depth adjustment of 14mm stroke and precision blade roundness of up to +/-0.005mm, it adapts to slit only the upper layer cut off/non-cut through at lower layer and also reduces blade wear out for life-time extending.
The MT-A310H is ideally suited to a wide range of heavier material applications like medical adhesive tapes, foam tapes, and protection film.

Detail

Shear Cut Knifeholder

MT-A410Shear Pneumatic Knife holder

MT-A410 is the popular shear knife-holder in many slitting applications. It equipped 90mm top blade for general shear slitting propose and characterized by two individual control valves of downstroke and side contact, not only independent control each valve but also continuous automatic action by one valve, more convenient and flexible for online operation. Besides the depth adjustment screw provide adjustable downstroke to control overlap modularized component design has improved quality and reduce costs to offer a new knife-holder option.
MT-A410 offers a wide range of slitting material including plastic, paper, copper foil…etc., thickness under 0.4mm and slit width within 45mm application.

Detail

Shear Cut Knifeholder

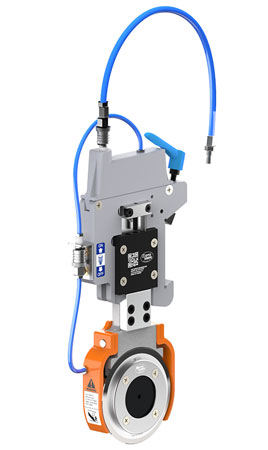

MT-A425Slim Shear Pneumatic Knife holder

MT-A425 features a compact design and costeffective and in the shear knife-holder category. It is specialized in narrow slitting application, which minimum slit width up to 28mm. The new swing design provides stable side contact force to getting a better slitting effect. It also equips two individual control valves of down stroke and side contact, not only independent control each valve but also continuous action by one valve, more convenient and flexible for online operation. The modularized component design has improved quality and reduce costs to offer a new knife-holder option.
It is optimally suited to light web slitting tasks with under 0.3mm thickness material like paper, plastic film, non-woven fibers and others.

Detail

Shear Cut Knifeholder

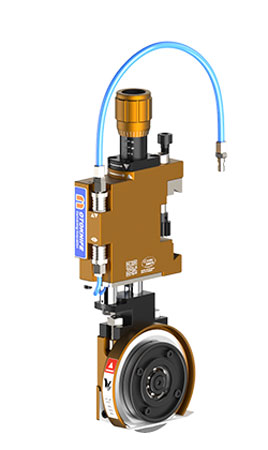

MT-A450Shear Pneumatic Knife holder

MT-A450 is new designed for flexible application and improving operational efficiency. It has cant angle adjustable and replaceable bottom make easier to use at different web direction. The new function, self flow control can prevent damage blade when operation, and another Iike micrometer, with the same structure the micro depth adjustment, enhance control overlap distance accuracy up to 0.05mm. Standard knife holder equips ø90mm top blade, it can also choice 450L for ø105mm top blade. MT-A450 offers a wide range of slitting material including plastic, paper, copper foil..etc., thickness under 0.4mm and slit width within 53mm applications.

Detail

Shear Cut Knifeholder

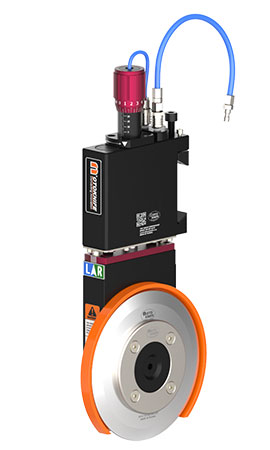

MT-A610Heavyduty Pneumatic Knife holder

MT-A610 has aunique patent design with three cylinders and robust knife-holder to offer stable down force. Easy operation, this model including two stage action, down stroke and side stroke can be controlled by individual valves or continuous movement. Built in self-flow control is ideal for reducing the downward rate of knifeholder prevents blade damage when improper operation. New micro depth adjustment enhances control overlap distance, accuracy up to 0.05mm. Adjustable cant angle provide wide a range of different web direction application.
The MT-A610 is ideal for a wide range of applications throughout a multitude of diverse shear slitting like paper, plastic film, non-woven fibers and others.

Detail

Shear Cut Knifeholder

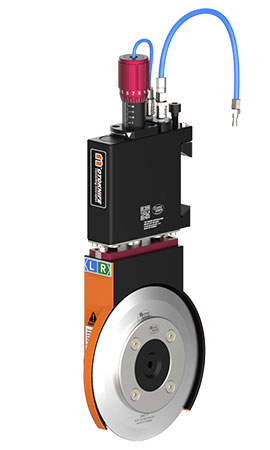

MT-A650Heavyduty Pneumatic Knife holder

MT-A650 has included the same unique patent t design, three cylinder robust knife-holder, individual down stroke and side stroke valves, self-flow control and accuracy micro depth adjustment as with the MT-A610 to provide easy operation and stability down force pressure when online slitting. With modular integrated bottom knife-holder, the MT-A650 handle cant angle adjustment to adapt different web path direction application, side contact limit to extend blade lifetime and offer outstanding performance.
MT-A650 Knife-holder is ideally suited for paper, plastic film, non-woven fibers and others converting industry.

Detail

Shear Cut Knifeholder

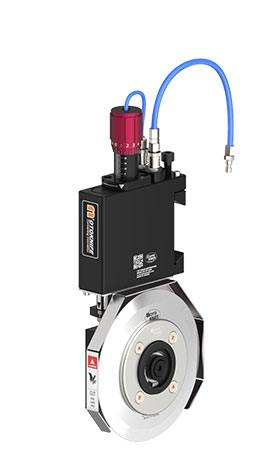

MT-A660Heavyduty Pneumatic Knife holder

MT-A660 pneumatic shear-type knife-holder equips two sets of the manual valve which able to individually or be linked to control the downstroke and sidestroke.
Our patented knife-holder body is made of high-strength 6061 aluminum alloy, can provide stable downforce pressure by three-cylinder robust design, reaching the perfect slitting effect.
MT-A660 can well-handle the adjustment of the cant angle for the different material path direction, also strengthen the structure to ensure the consistency of the slitting quality.
With high rigidity knife-holder and the 150mm blade,
MT-A660 knife-holder is ideally suited for paper, plastic film, non-woven fibers, and others converting industry material.

Detail

Shear Cut Knifeholder

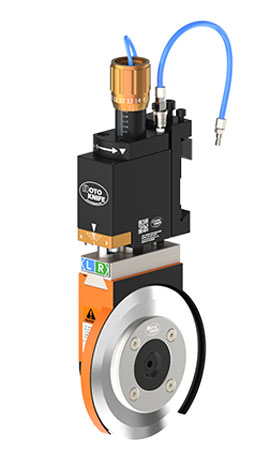

MT-A850Heavyduty Pneumatic Knife holder

MT-A850 is a deal for heavy-duty application since it has a new robust knife-holder design ensuring stable downforce and side force. Individual control valves provide two-stage action, downstroke, and sidestroke continuous or separate movement. Self-flow control and micro depth adjustment design is the key to prevent damage blade and simplifying the operation due to up to 0.05mm down stoke overlap control. New cant angle adjustment and adaptive bottom knife holder offer easy operation for different web direction application. The changeable mounting bracket can be compatible with GB guide-bar series or other different exist guide-bar systems.
MT-A850 with outstanding flexibility design allows major for paper, plastic film, non-woven fibers, and other applications.

Detail

Shear Cut Knifeholder

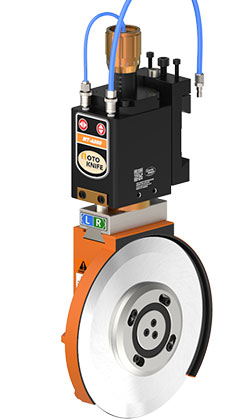

MT-A880Heavyduty Pneumatic Knife holder

MT-A880 is our versatile heavyduty knife-holder that is suitable for a wide range of shear slitting application. It combines extremely durable knife-holder body and 200mm top blade handle maximum slitting speed up to 2000M/min. Ideal design of micro depth adjustment, individual stroke valve, self-flow control, cant angle adjust, reversible blade cartridge, mounting bracket, are a key benefit to reduce setting time and deliver convenient operation.
MT-A880 provides a highly reliable slitting performance major application is for thicker, high slitting speed paper, plastic film, non-woven fibers and others.

Detail

Hot Cut Knifeholder

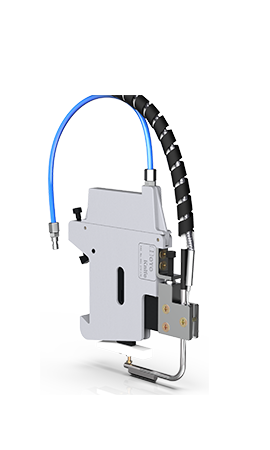

MT-A710Hot-Cut Pneumatic Knife holder

MT-A710 hot-cut type knife-holder adopts the air pressure design to control the downstroke, equip with a special heating blade that can process the slitting and melt simultaneously.
The knife-holder is provided with small dimension, rapid rise/ cool down temperature and highly stable slitting quality.
Unlike conventional heating methods, MT-A710 can be heated to the required temperature within 1 minute, savings in warm-up time significantly.
It can also be cooling down to the room temperature within a few minutes, to prevent the operator from inadvertently touching the blade to get hurt.
MT-A710 can also be operated with MT-A710C the temperature controller optionally.
MT-A710C using the SSR method by PID controller, can control the working temperature much precisely, ensure the consistency of the slitting quality.

Detail

Score Cut Knifeholder

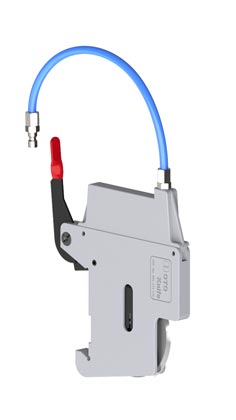

MT-C121Easy Clamp Pneumatic Knife holder

MT-C121 Easy clamp-type knife-holder is designed for 80 ° / 60 ° dovetail which has a quick locking mechanism design for time-saving in its class. With its easy clamp, it tools free for locking knife-holder on guide-bar only via clamp handle and also can prevent over-tightening screw to damage knife-holder. Optionally teeth ruler with our guide-bar which makes arrange position easily and boost your productivity.
MT-C121 is engineered for easy operation and time-saving, it allows adapt many slitting applications like light rubber, paper, cloth, plastic film... etc..

Detail

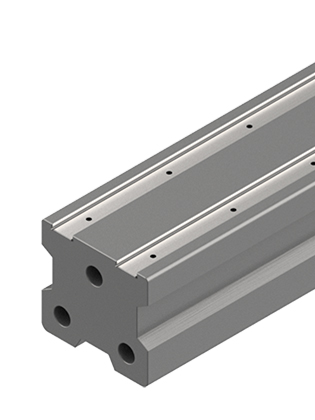

Guide-bar

GB01Guide-bar

GB01 is for light duty application with less knifeholder installed ,it need additional fixed support beam and air supply tube.

Detail

Guide-bar

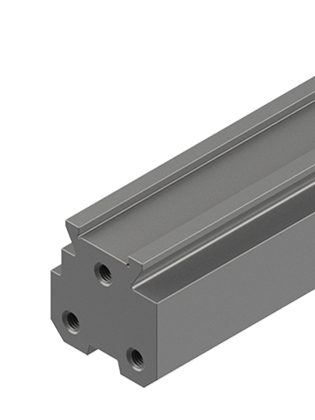

GB02Guide-bar

GB02 is for heavy duty application with rigid body ,there have three holes on frame side it can be used for fixed and air supply tube propose.

Detail

Guide-bar

GB03Guide-bar

GB03 is for light duty application with less knifeholder installed , it have two holes on frame side it can be used for fixed and air supply tube propose.

Detail

Guide-bar

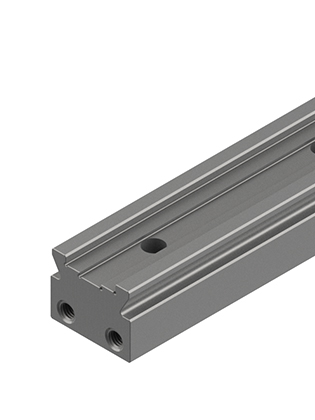

GB04Guide-bar

GB04 is for light duty application with less knifeholder installed , it have two holes on frame side it can be used for fixed and air supply tube propose.

Detail

Knives

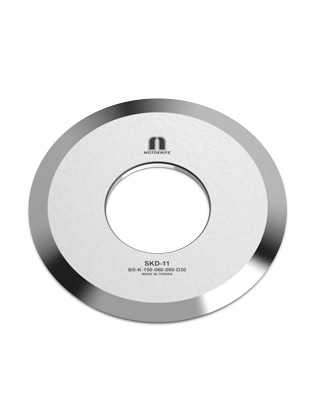

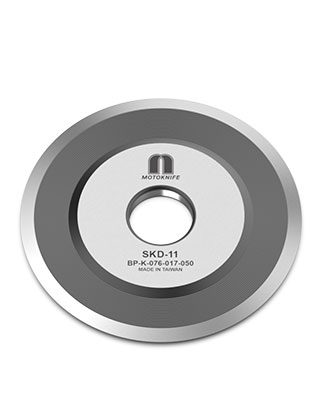

Score knifeCrush Cut Knives

Slitting score knives is most commonly
used for different crush cut applications such as paper, plastic film, rubber, cloth, and other thin films, etc. SKD-11 material is tool steel with good hardenability and abrasion resistance. All our knives are manufactured with excellent quality and control production at every step.

Detail

Knives

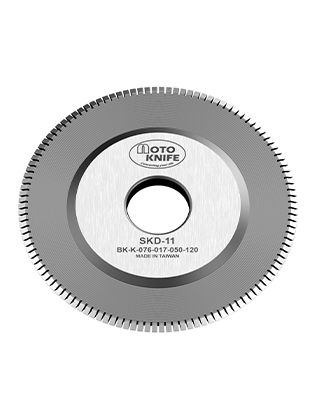

Perforating knifeCrush Cut Knives

Perforating knife is using for slitting paper, fabric ,thin plastic film, photo paper material, it can be produce in different tooth number and sizes by customer request. Perforating knife is manufacture with precision grinding machine, has excellent quality and control production at every step.

Detail

Knives

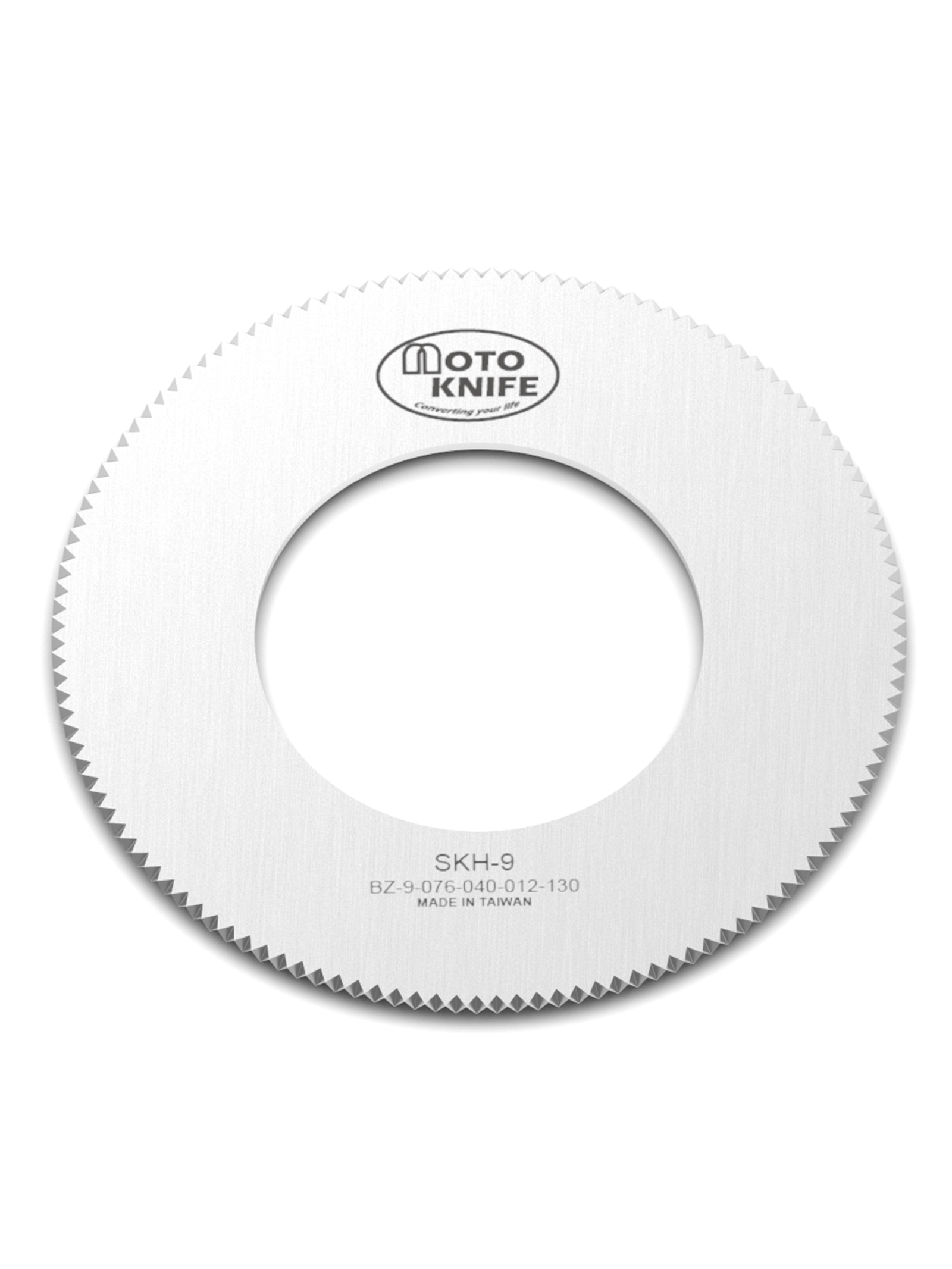

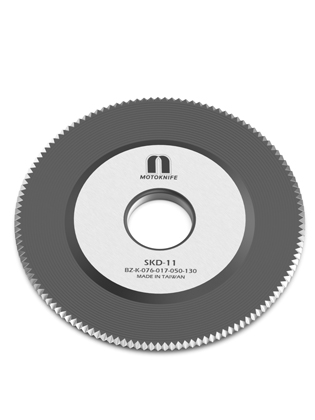

130T Zigzag knifeCrush Cut Knives

The 130 teeth zigzag blade is made of high-speed steel (HSS) imported from Europe, processed by well heat treatment to increase its mechanical properties such as toughness and wear resistance. The blade tip is precisely ground to maintain an equal tooth pitch and peak, the slitting edge will generate the zigzag notch, to facilitate tearing along the notch. The zigzag blade is suitable for easy-tear applications such as medical tapes.

Detail

Knives

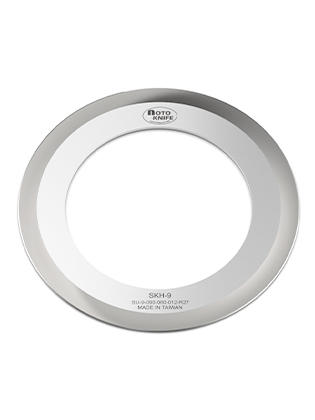

Shear bladeTop Knives

The top knife is used for shear knife holder MT-A410/A425/A450 application for different materials such as paper, plastic film , rubber,non-woven, cloth, and other thin films etc. HSS material is tool steel with good hardenability and abrasion resistance. All our knives are manufactured with excellent quality and control production at every step.

Detail

Knives

Shear curve bladeTop Knives

The top knife is used for shear knife holder MT-A410/A425/A450 application for different materials such as paper, plastic film , rubber,non-woven, cloth, and other thin films etc. HSS material is tool steel with good hardenability and abrasion resistance. All our knives are manufactured with excellent quality and control production at every step.

Detail

Knives

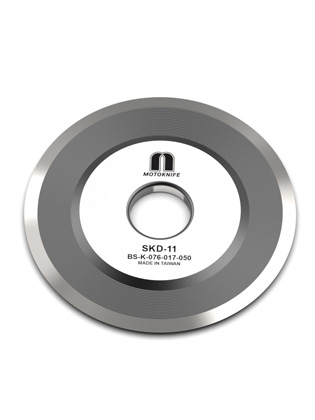

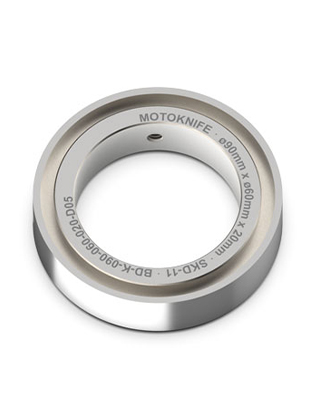

Bottom knifeBottom Knives

The bottom knife is used for shear cut application for different materials such as paper, plastic film, rubber,non-woven, cloth and other thin-film, etc. SKD11 material is tool steel with good hardenability and abrasion resistance. All our knives are manufactured with excellent quality and control production at every step.

Detail

Accessories

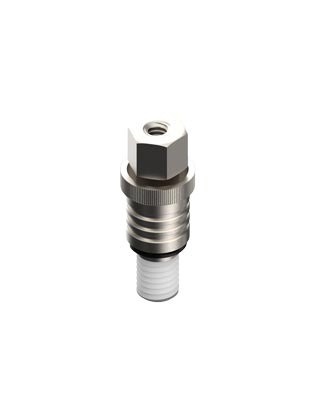

Downstroke/Sidestroke Control ValveControl Valve

The downstroke/sidestroke control valve is installed on the shear knife-holder and is used as independent control of the downstroke and sidestroke action.

Detail

Accessories

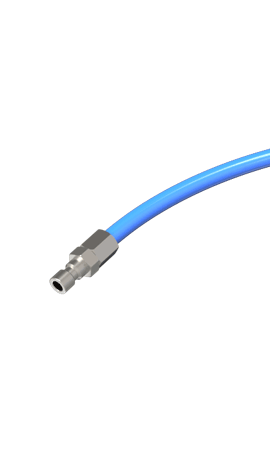

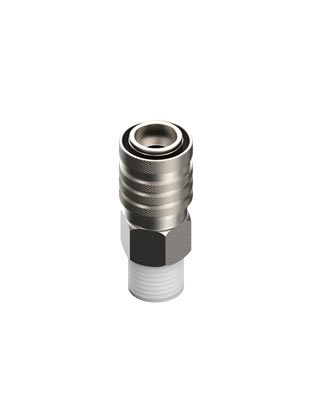

Male/Female AdaptorAdaptor

The female connector is installed on the dovetail or the air pressure supply pipe, and the male connector is connected to the end of the pneumatic tube of the knife holder. The male and female connectors are used for the rapid disassembly of the knife holder air pressure source.

Detail

Guide-bar

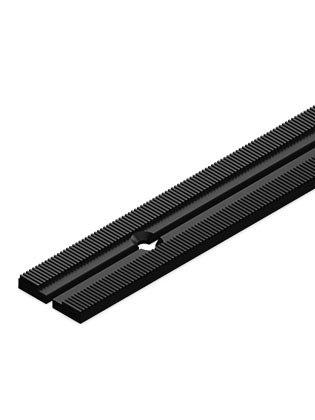

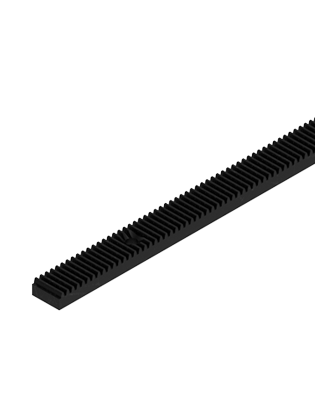

1mm/2mm Teeth rulerTeeth ruler

1mm/2mm Teeth ruler

Detail

Knives

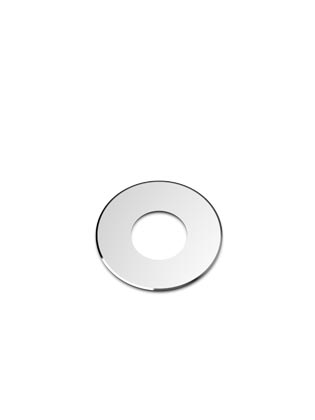

Tungsten bladeTungsten blade

Tungsten blades have the characteristics of wearability, high-temperature resistant and high hardness, which can effectively reduce the cycle of blade replacement and improve benefits. Slitting occasions of plastic film and non-woven materials.

Detail

Score Cut Knifeholder

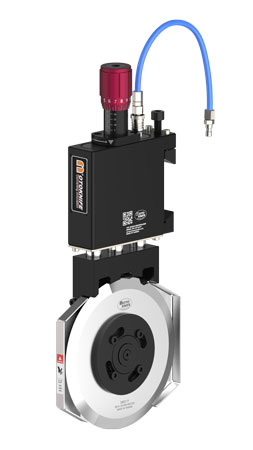

MT-A510Heavyduty Pneumatic Knife holder

MT-A510 provides a crush slitting solution that maximizes your performance and minimizes your costs. It offers a flexible solution for thicker material such as rubber, sandpaper, roofing shingles, fiberglass, paper, and plastic film, especially like multi-layer compound material as well as tissue, non-woven, and adhesive tapes. The patent design with rigid knife-holder has provided reliable downforce to perform slitting work and ensure slitting good quality for different purpose applications. Combined with self-flow control and new depth adjustment, we develop an easy solution to prevent over airflow damaged blade when downward and micro depth knob providing accuracy of up to 0.05mm downstroke control for your operator.

Detail

Accessories

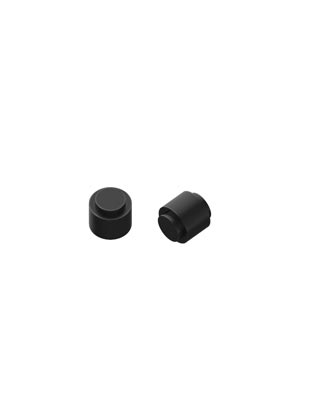

5.0mm/6.2mm blade axleBlade Axle

For 5.0mm/6.2mm thickness blade axle

Detail
