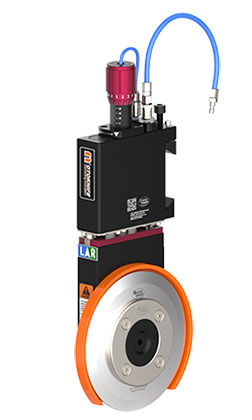

Heavy-duty Pneumatic Shear Knifeholder
MT-A610
Introduce

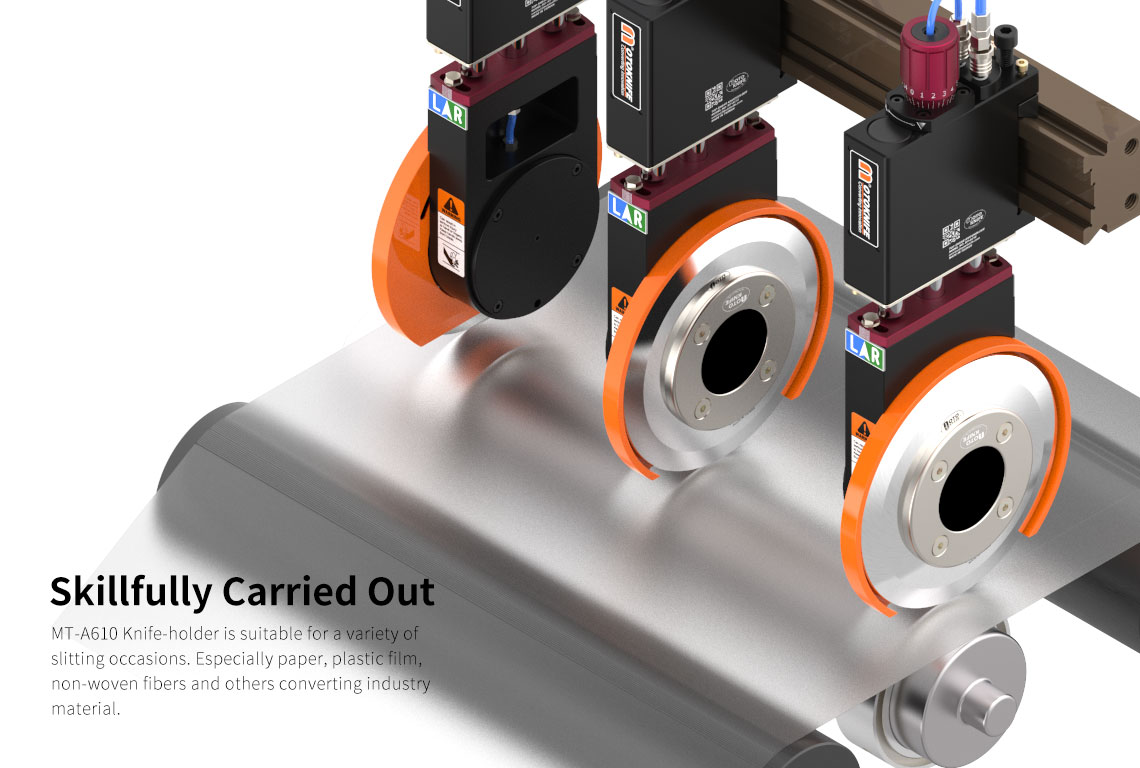

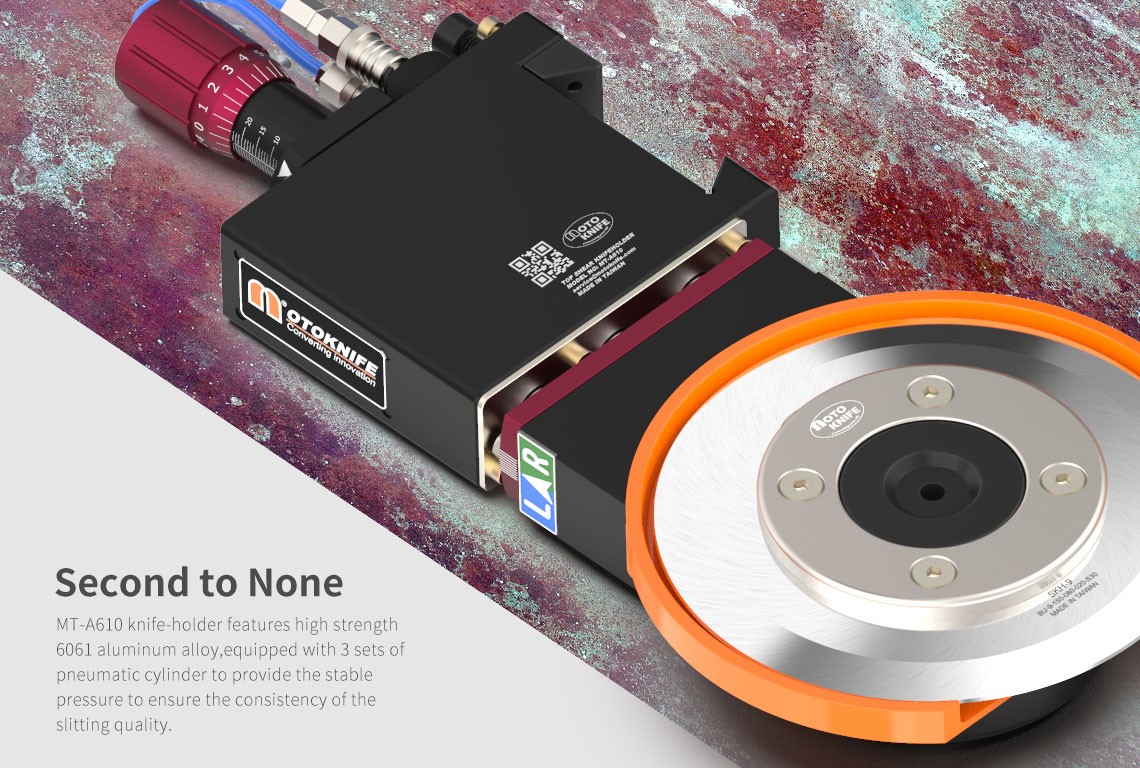

MT-A610 has aunique patent design with three cylinders and robust knife-holder to offer stable down force. Easy operation, this model including two stage action, down stroke and side stroke can be controlled by individual valves or continuous movement. Built in self-flow control is ideal for reducing the downward rate of knifeholder prevents blade damage when improper operation. New micro depth adjustment enhances control overlap distance, accuracy up to 0.05mm. Adjustable cant angle provide wide a range of different web direction application. The MT-A610 is ideal for a wide range of applications throughout a multitude of diverse shear slitting like paper, plastic film, non-woven fibers and others.
Model MT-A610-BU930
Min. slit width 53mm
Max. slit speed 1000M/min(1)
Down-stroke 0~25mm

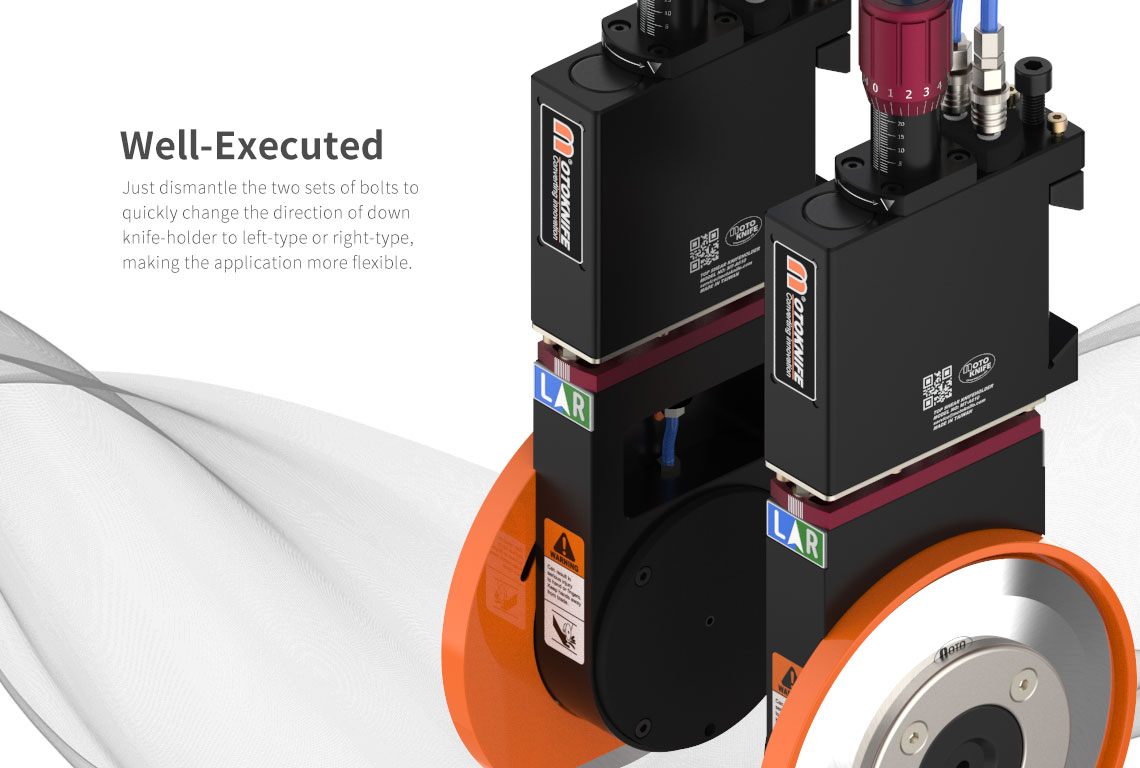

Cant angle +/-3 degrees
Side-stroke 0~3mm
Air pressure 3~6/kg/cm²

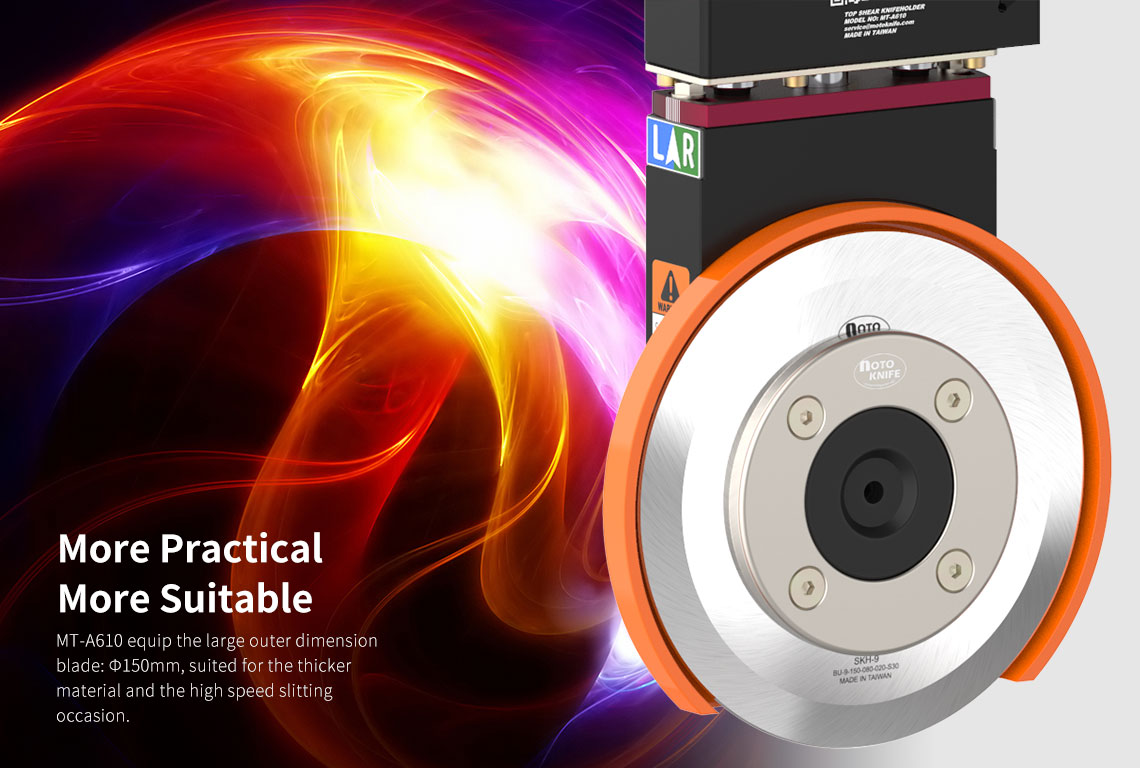

Blade O.D. Ø150mm
Guide-bar GB01/GB02/GB04
Feature Self flow control
Micro depth adjustment

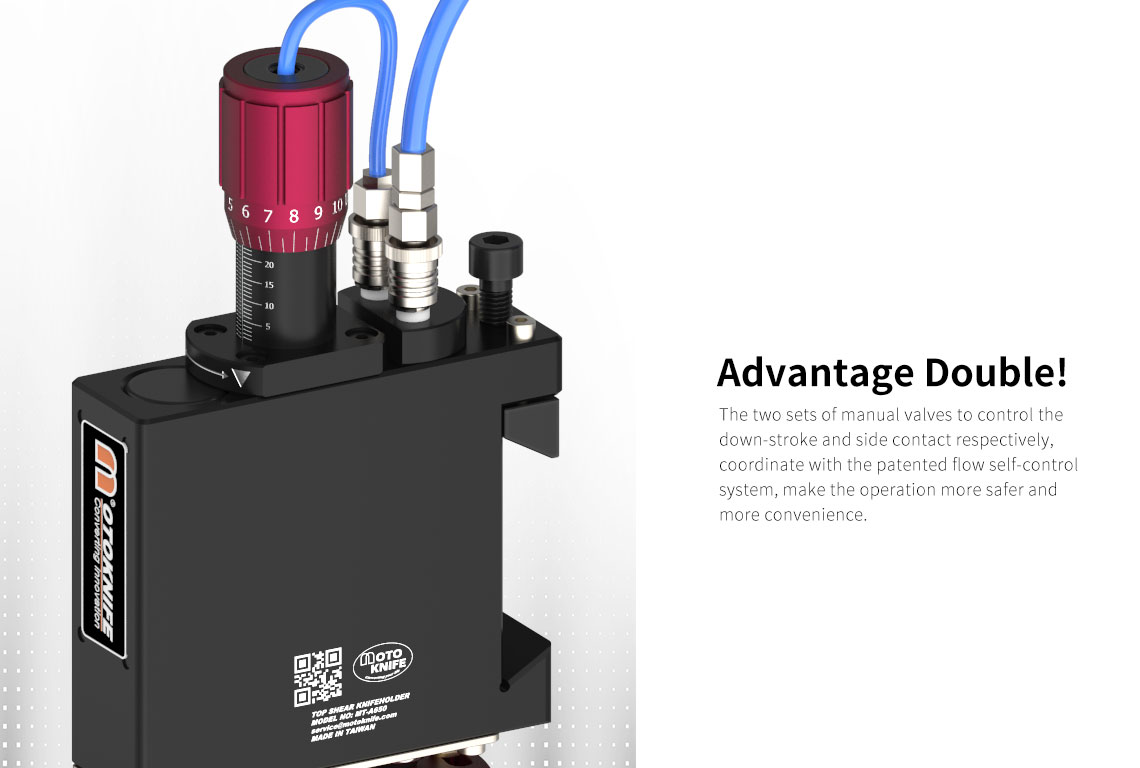

Individual control valve

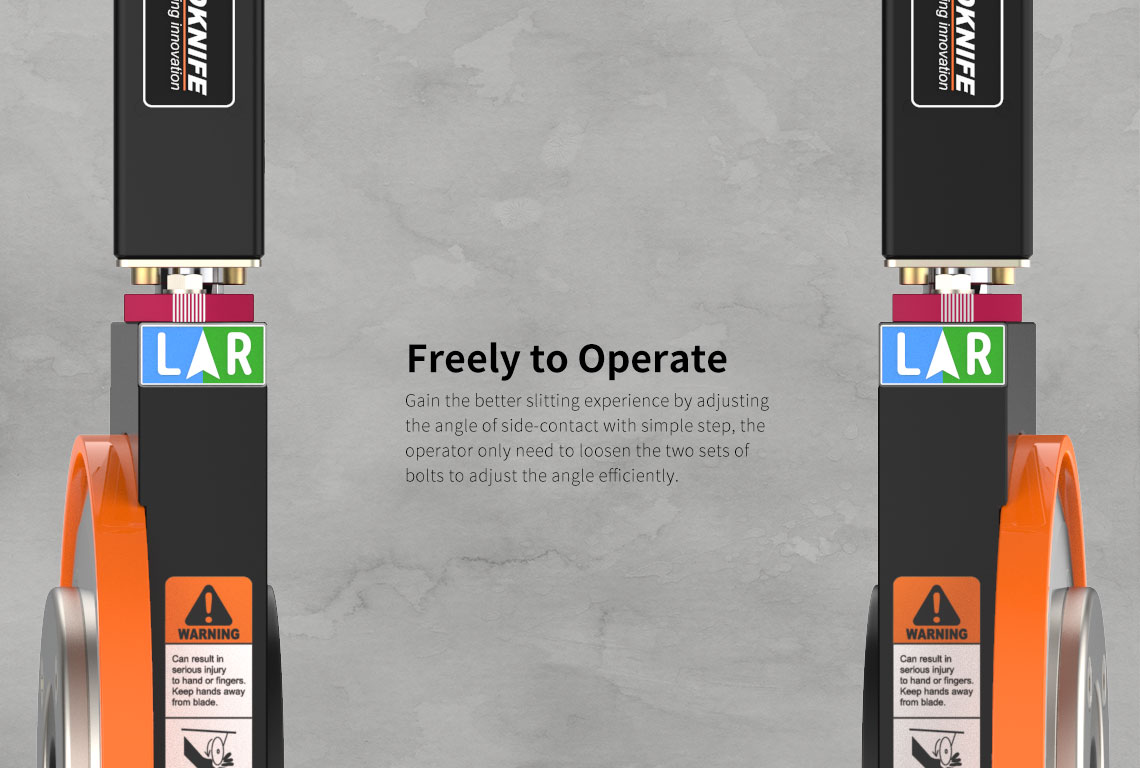

Cant angle adjustment
Patent structure
Suitable Various Papers >>> kraft paper, silicone paper, releasing paper, decoration
wallpaper, masking paper.
Various Plastic films >>> flexible laminated films, soft PVC films, BOPP,
PET, PE, PS, LDPE, PLA, SBS, various adhesive tape.
Cloth & fabrics >>> non-woven cloth, synthetic leather, natural cotton, mesh
cloth, medical cloth, label cloth...etc.
Metal films >>> Copper foil, aluminum foil.

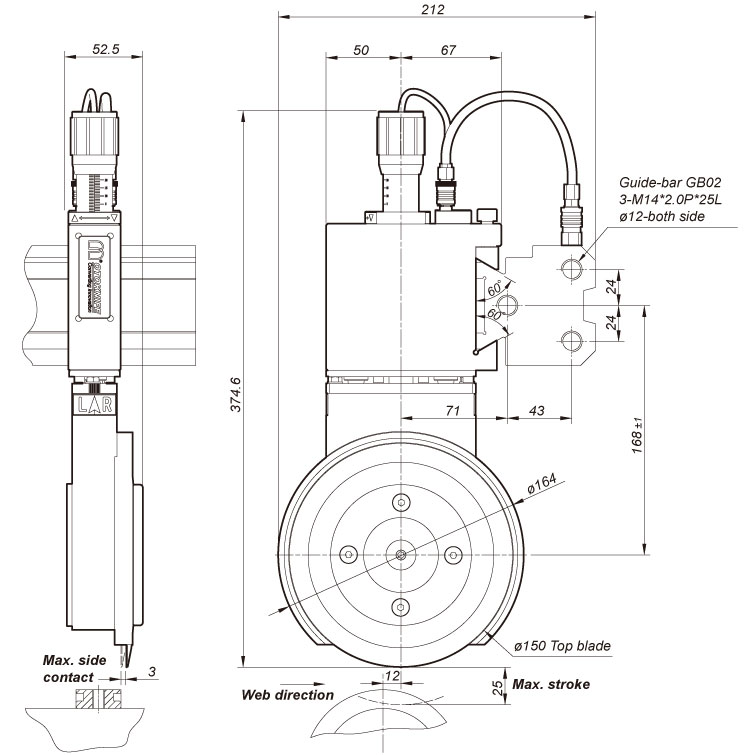

Drawing
(1) The maximum slitting speed is according to the actual materials, thickness and slitting results.
Recommend
Crush Cut Knives
Precision blade
Each blade will undergo special precision grinding and control of each blade's roundness to reach +/-0.005mm before the product leaves our factory. The precision blade with fine grinding hardness backing roller and through A310/A310H half-cut knife holder depth adjusting allows you to cut as depth as you want.
Guide-bar
GB05
GB05 is the new generation of the Guide-Bar series. It has the advantage of the linear guideway groove, side-fixed installation, lightweight, and fast delivery. Besides, there are two lengths of guide-bar to choose from, 2000mm and 2400mm.
Crush Cut Knives
130T Unibody Zigzag knife
The 130 teeth zigzag blade is made of tool steel (SKD-11) imported from Europe, processed by well heat treatment to increase its mechanical properties such as toughness and wear resistance. The blade tip is precisely ground to maintain an equal tooth pitch and peak, the slitting edge will generate the zigzag notch, to facilitate tearing along the notch. The zigzag blade is suitable for easy-tear applications such as medical tapes.
Bearing
5.0mm/6.2mm Bearing
Bearings for score blade, there are two different model , 697ZZ is for 5.0mm thickness and 17mm inner diameter score blade ; 6900RS is for 6.2mm thickness and 22mm inner diameter.
