Bottom knife

Introduce

The bottom knife is used for shear cut application for different materials such as paper, plastic film, rubber,non-woven, cloth and other thin-film, etc. SKD11 material is tool steel with good hardenability and abrasion resistance. All our knives are manufactured with excellent quality and control production at every step.

Information Specification Download

Bottom blade

bottom blade

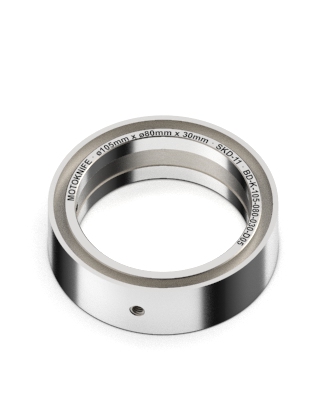

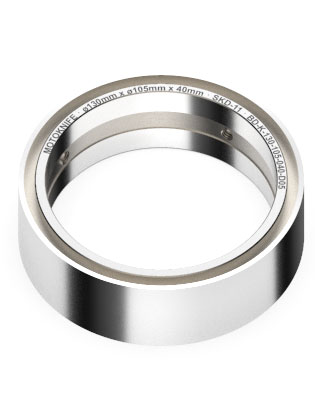

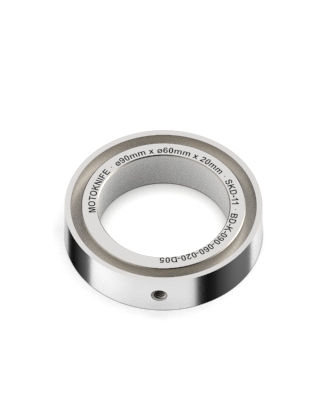

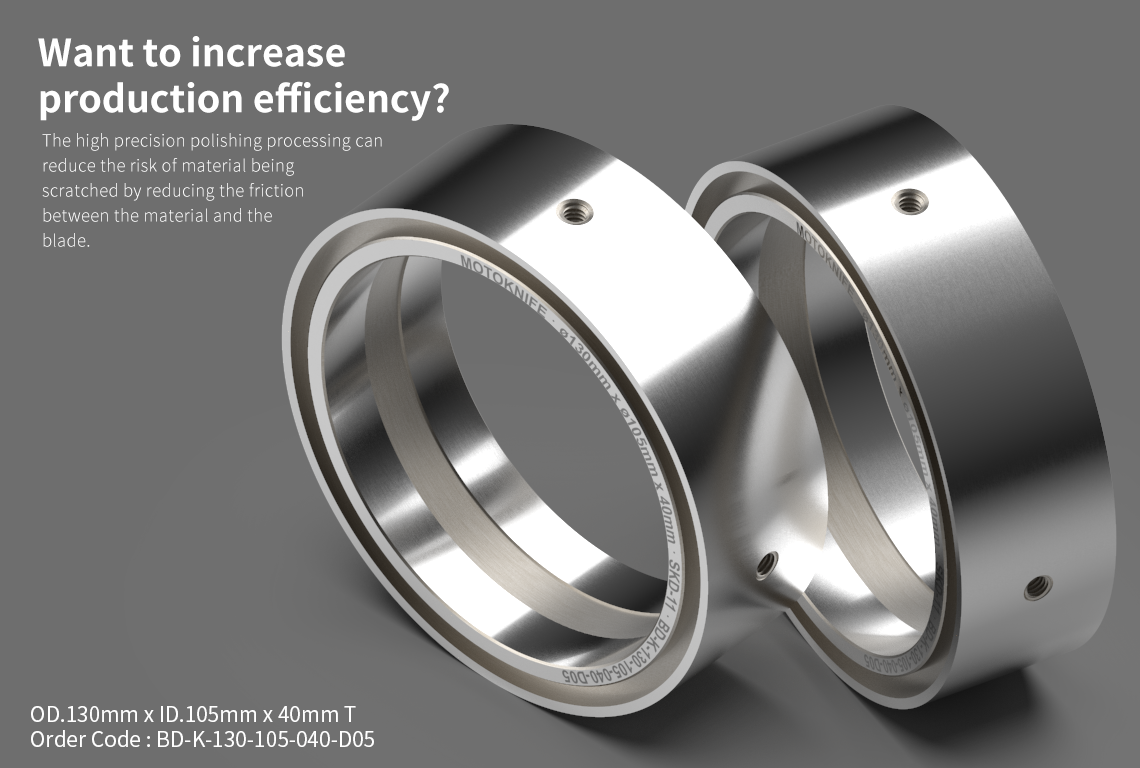

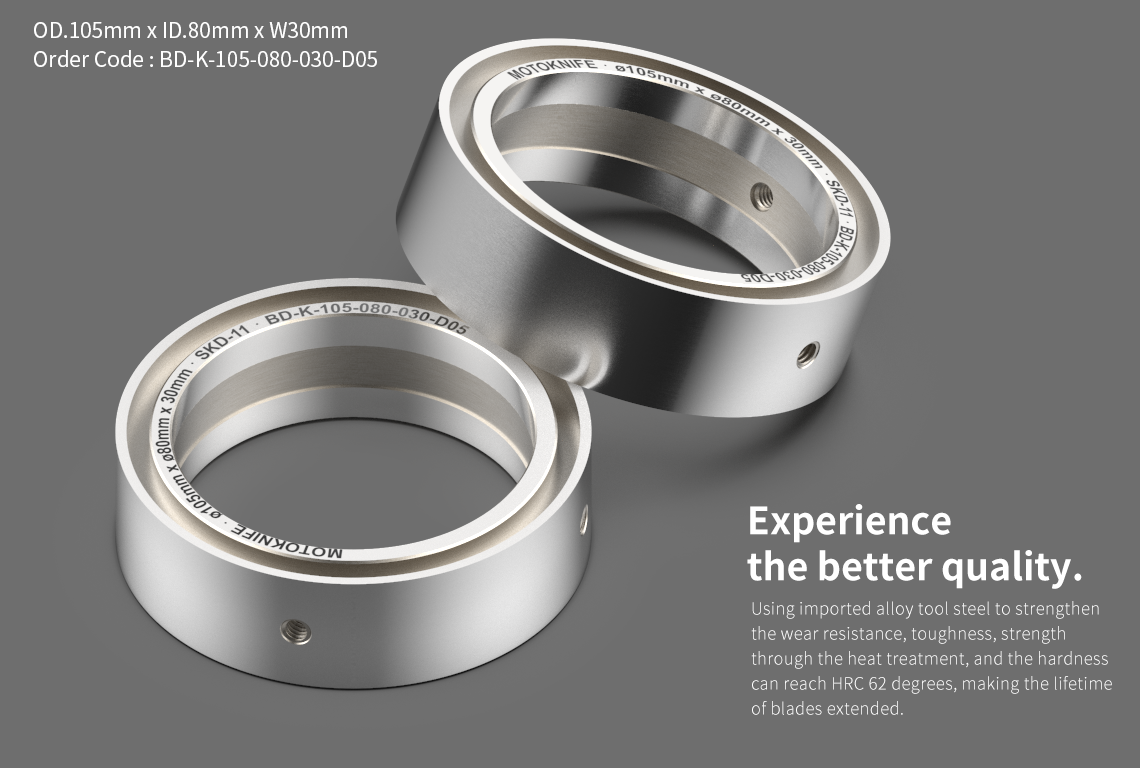

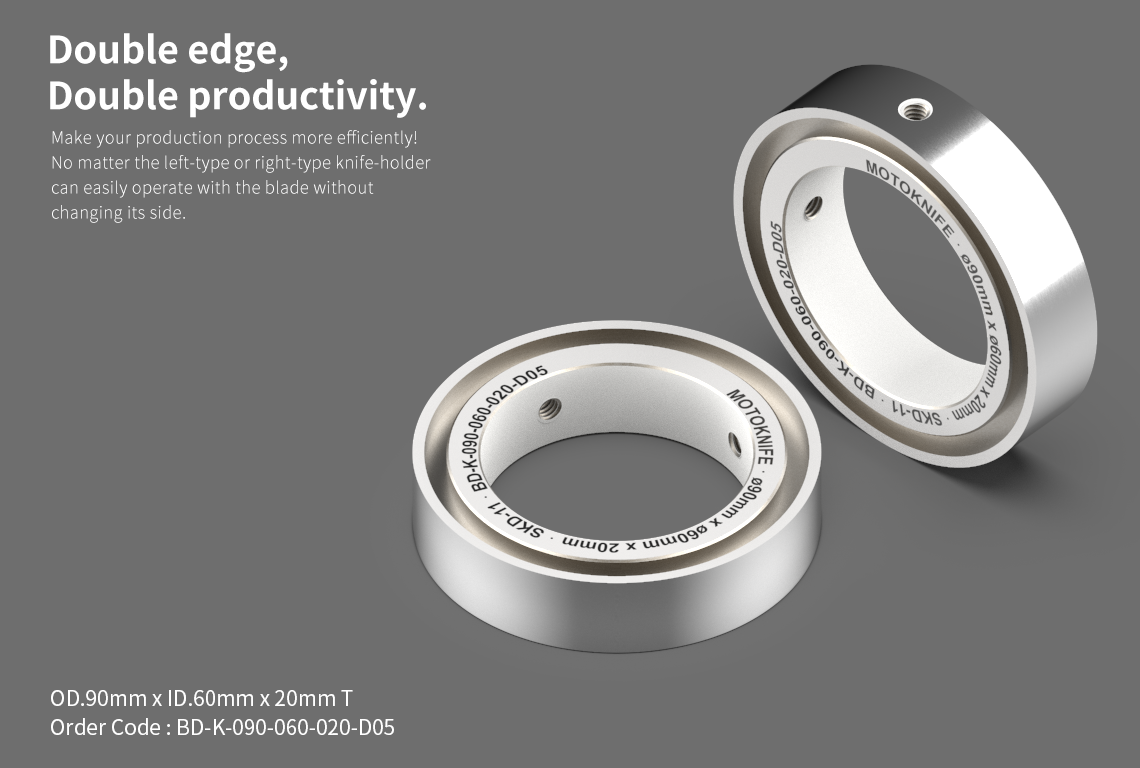

Model no. BD-K-090-060-020-D05 BD-K-105-080-030-D05 BD-K-130-105-040-D03

bottom blade

Model no. BD-K-090-060-020-D05 BD-K-105-080-030-D05 BD-K-130-105-040-D03

Blade O.D. 90mm 105mm 130mm

Blade I.D. 60mm 80mm 105mm

Blade width 20mm 30mm 40mm

Blade angle 5 degrees 3 degrees

Material Description SKD11's steel grades are GB Cr12MoV in China, JIS SKD11 in Japan,

AISI / SAE D2 in USA, DIN 2X165CrMoV12 in Germany.

SKD11 belongs to mold tool steel, and it is also a kind of high-carbon alloy steel. It has both high hardness,

high strength, and abrasion resistance,

and its surface is precisely ground, which is suitable for making blades.

Chemical composition (JIS G4051) (C)% : 1.4~1.6

(Si)% : 0≦0.4

(Mn)% : 0≦0.6

(P)% : 0≦0.03

(S)% : 0≦0.03

(Ni)% : 0≦0.5

(Cr)% : 11.0~13.0

(Mo)% : 0.8~1.2

(V)% : 0.2~0.5

(Cu)% : 0≦0.25

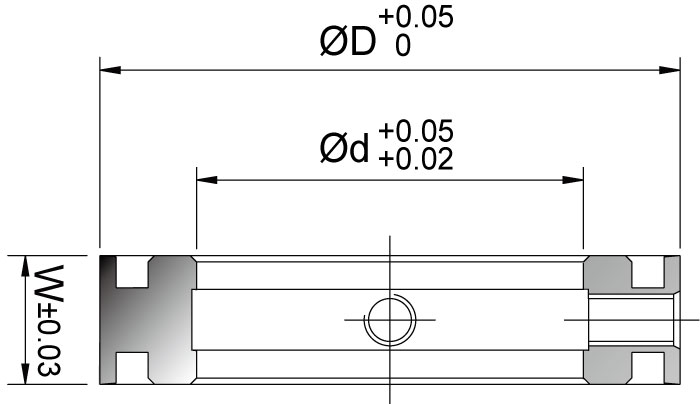

Drawing

Unit:mm

Order no.	BD-K-090-060-020-D05	BD-K-105-080-030-D05	BD-K-130-105-040-D03
d	60	80	105
D	90	105	130
W	20	30	40

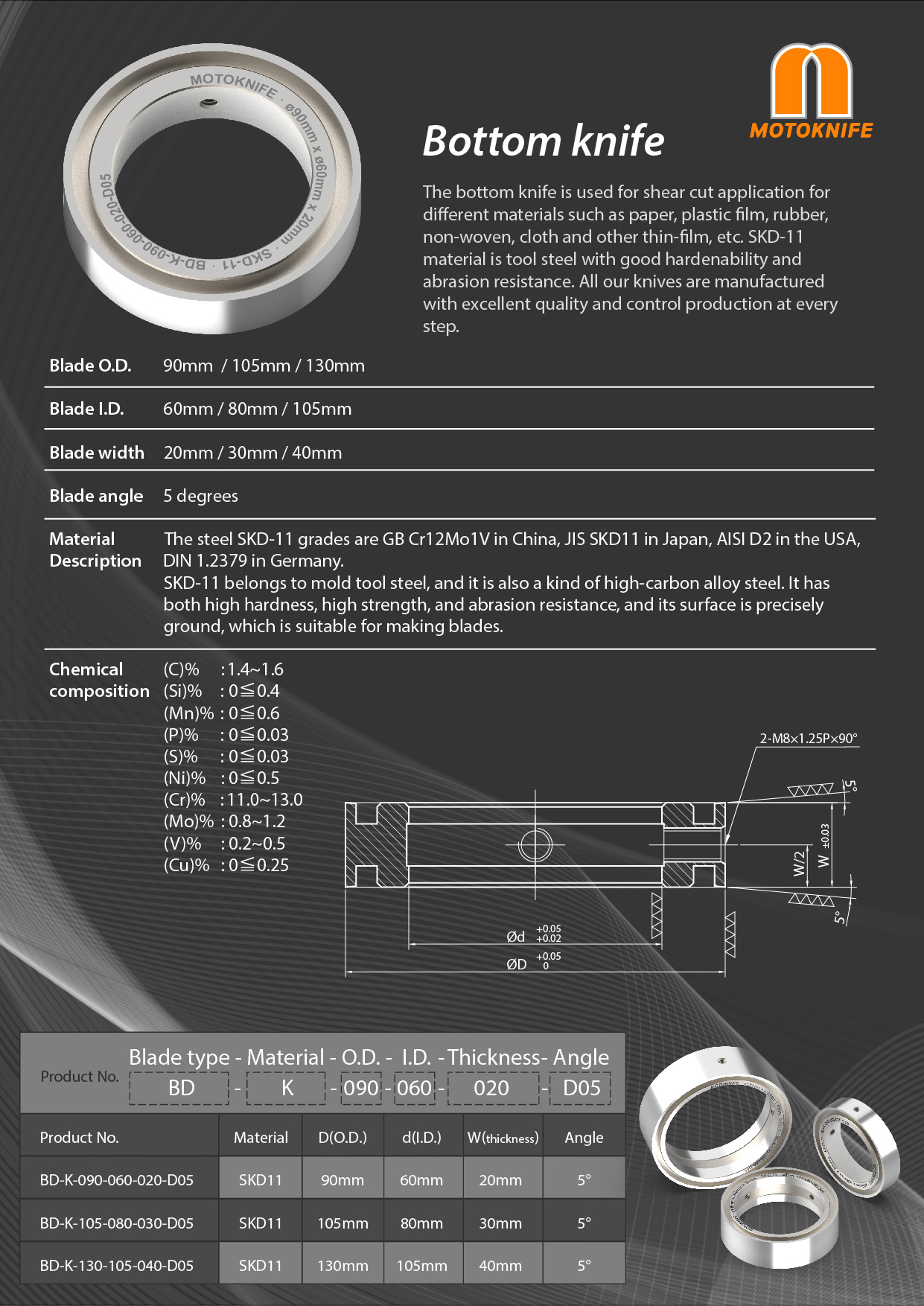

Bottom knife Catalog
